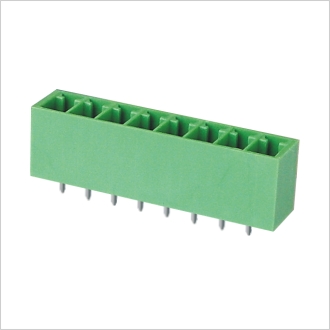

PTB350S-03-06-3 Six Core 3.81mm Wire to Wire Connector

Product Item : PTB350S-03-06-3
Category： Connectors
Spacing: 3.81mm
Product description：PTB350S-03-06-3 Six Core 3.81mm Wire to Wire Connector MCV1，5/6-G-3，81 RoHS
Order online

Technical parameters	Values (range)
UL-Technical Data
Spacing：	3.81mm
Rated voltage：	300V
Rated current：	8A
Pressure line range：
IEC-Technical Data
Overvoltage Category - Degree of pollution：	Level 3
Rated voltage：	160V,320V
Rated impulse voltage：	2.5KV
Rated cross-section - rated current：	mm/8A
Material
Insulating materials：	PA
Flammability rating：	UL94,V-0
Contact materials：	Brass
Contact point of coating：	Tin Plating
Other Information
PCB board aperture：	1.3mm in Diameter
Strip length：
Screws \| Torque：
