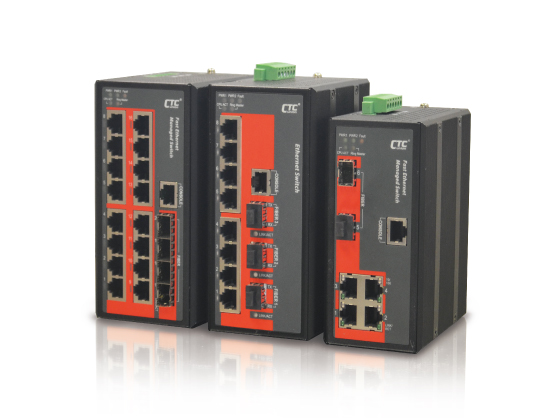

IFS-1604GSM, IFS-803GSM, IFS-402GSM

产品分类：官方代理
描述：16x(8x, 4x) 10/100Base-TX + 4x(3x, 2x) 100/1000Base-X SFP
产品描述：IFS-1604GSM, IFS-803GSM, IFS-402GSM
在线订购

4x 10/100Base-TX RJ-45 and 2x 100/1000Base-X SFP Fiber (IFS-402GSM)
8x 10/100Base-TX RJ-45 and 3x 100/1000Base-X SFP Fiber (IFS-803GSM)
16x 10/100Base-TX RJ-45 and 4x 100/1000Base-X SFP Fiber (IFS-1604GSM)
UL60950-1, CE, FCC, Rail Traffic EN50121-4, Traffic control NEMA TS2 certified
Heavy industrial grade EMS, EMI, EN61000-6-2, EN61000-6-4 certified
Cable diagnostic, Measuring cable normal or broken point distance
Rugged Metal, IP30 Protection & Fanless design
Supports Green Ethernet IEEE 802.3az EEE (Energy Efficient Ethernet) management to optimize the power Cosumption
STP, RSTP, MSTP, ITU-T G.8032 Ethernet Ring Protection Switching (ERPS) for redundant cabling
Provides 5 instances that each can support μ-Ring, μ-Chain or Sub-Ring type for flexible uses.Supports up to 5 rings in one device
μ-Ring for Redundant Cabling, recovery time<10ms in 250 devices
DHCP Server/ Client/ Relay/ Relay option 82/ Snooping
QoS, Traffic classification QoS, CoS, bandwidth control for Ingress and Egress, Storm Control, DiffServ
IEEE 802.1q VLAN, MAC based VLAN, IP subnet based VLAN, Protocol based VLAN, VLAN translation, GVRP, MVR
Dynamic IEEE 802.3ad LACP Link Aggregation, Static Link Aggregation
IGMP snooping V1/V2/V3, IGMP Filtering/ Throttling, IGMP query, IGMP proxy reporting, MLD snooping V1/V2
Security : Port based and MAC based IEEE 802.1X, RADIUS, ACL, TACACS+, HTTP/HTTPS, SSL/SSH v2
Software upgrade via TFTP and HTTP, redundant firmware to avoid in case of upgrade failure
Supports FTP client for upload/download configuration
Supports IEEE 1588 PTP V2 for precise time synchronization to operate in Ordinary-Boundary, Peer to Peer Transparent Clock, End to End Transparent Clock, Master, Slave mode by each port
RMON, MIB II, Port mirroring, Event syslog, DNS, NTP, SNTP, IEEE 802.1ab LLDP
Supports IPv6 Telnet server /ICMP v6
CLI, Web based management, SNMP v1/v2c/v3, Telnet server for management
Supports Modbus/TCP protocols for management
Provides SmartConfig for quick and easy mass Configuration*
Supports SmartView for Centralized Management*
