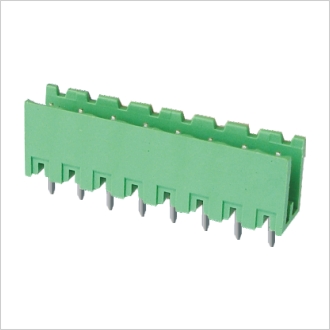

PTB750S-07-2-03-3 5.08mm Wire to Wire Connector

Product Item : PTB750S-07-2-03-3
Category： Connectors
Spacing: 5.08mm
Product description：PTB750S-07-2-03-3 5.08mm Wire to Wire Connector Jite PTB750S-07-2-03-3 3P 5.08 opening Green RoHS
Order online

Technical parameters	Values (range)
UL-Technical Data
Spacing：	5.00/5.08mm
Rated voltage：	300V
Rated current：	15A
Pressure line range：
IEC-Technical Data
Overvoltage Category - Degree of pollution：	Level 3
Rated voltage：	320V,630V
Rated impulse voltage：	4KV
Rated cross-section - rated current：	mm/18A
Material
Insulating materials：	PA
Flammability rating：	UL94,V-0
Contact materials：	Brass
Contact point of coating：	Tin Plating
Other Information
PCB board aperture：	1.6mm in Diameter
Strip length：
Screws \| Torque：
