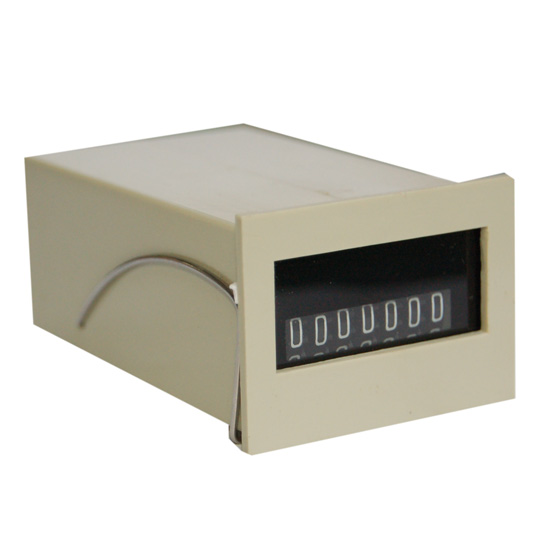

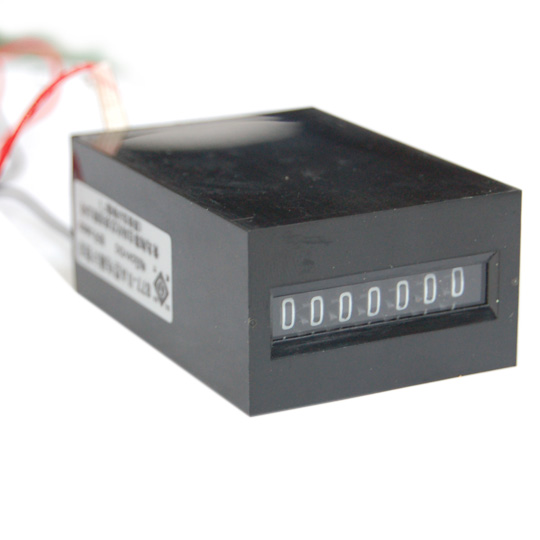

877 7-digits Electromagnetic Counter

Category： Customized Products
Product description：877-7-digits-Electromagnetic-Counter
Order online

Working principle and introduction: 877 7-digits electromagnetic counter is used to record the accumulative times of electrical signals, and it has no reset mechanism, it is mainly applied in copy machines, and it is also widely applied in petrol, chemistry, textile, machinery, mine, national defense, foodstuff and printing industry etc. for counting of various electrical pulses, together with other meters it can form a digital display instrument.

Product series and related technical parameters:

models	877	877-ⅡA
Display digit size(H×W)	4 mm×1.8 mm
Working temperature	-10℃～+50℃
Relative humidity	≤85%
Max capacity of accumulative counting	9999999
Operation voltage (fluctuation range: ±10%)	DC:5V~220V(various specifications and models); AC:24V~240V(various specifications and models)
Counting speed	AC:≤10times/sec; DC:≤20times/sec	AC:≤5times/sec; DC:≤10times/sec
Power	AC:2.5VA; DC:1.5W	AC:4VA; DC:3W

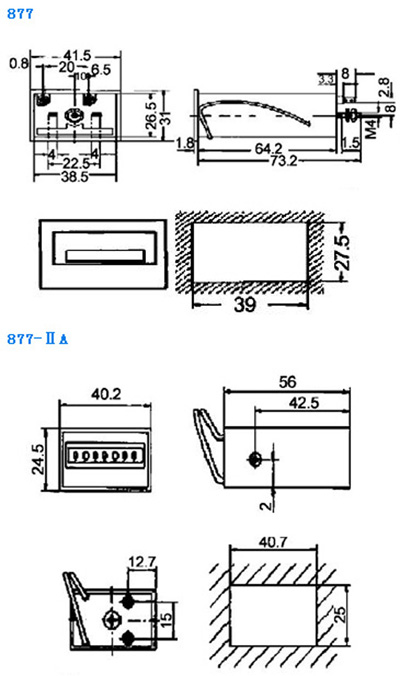

Dimension	75mm×41.5mm×31mm	56.5mm×40.2mm×24.5mm
This type product can be designed according to customer’s needs
